R2 System
R2 metal holder
MetalAdd-on
€1,250

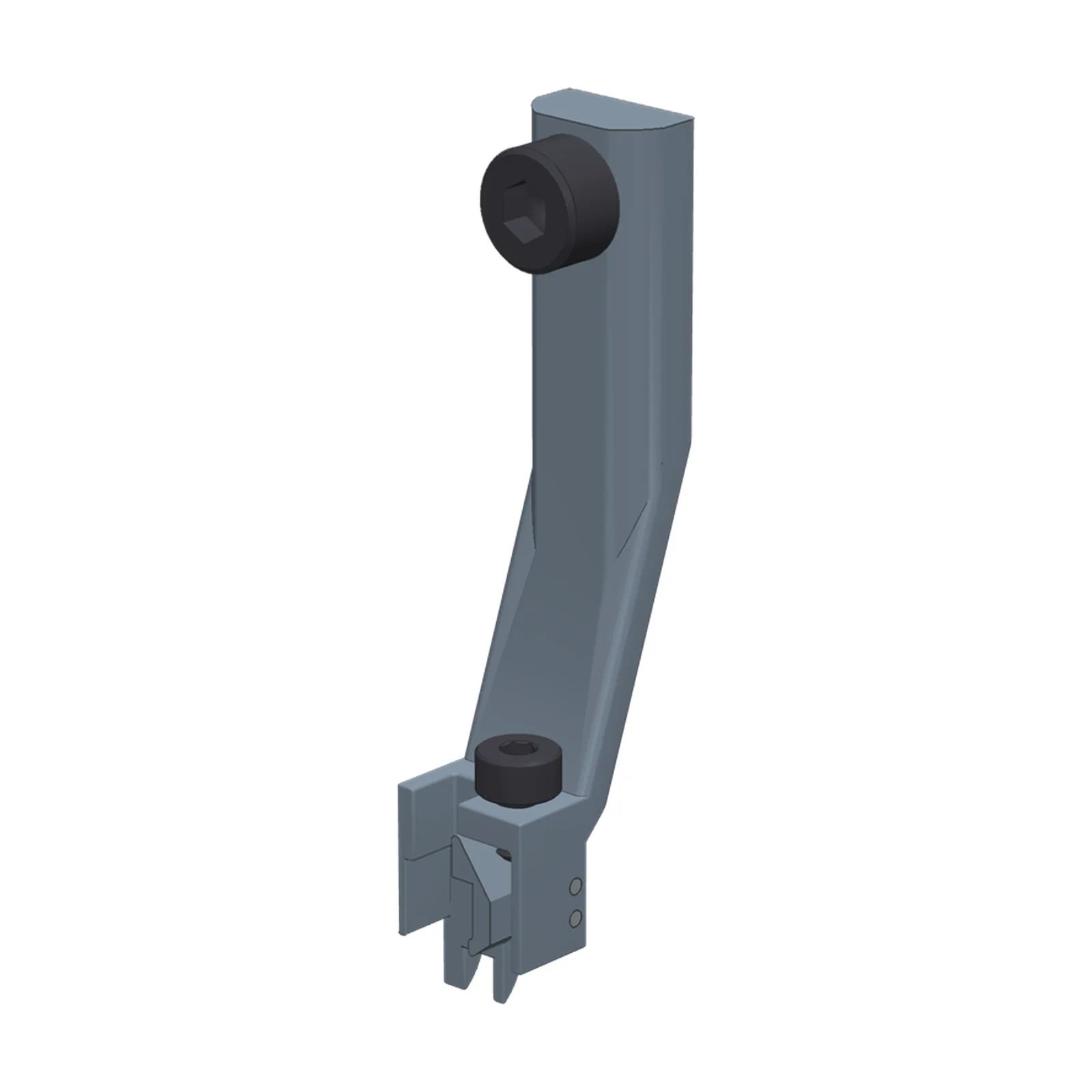

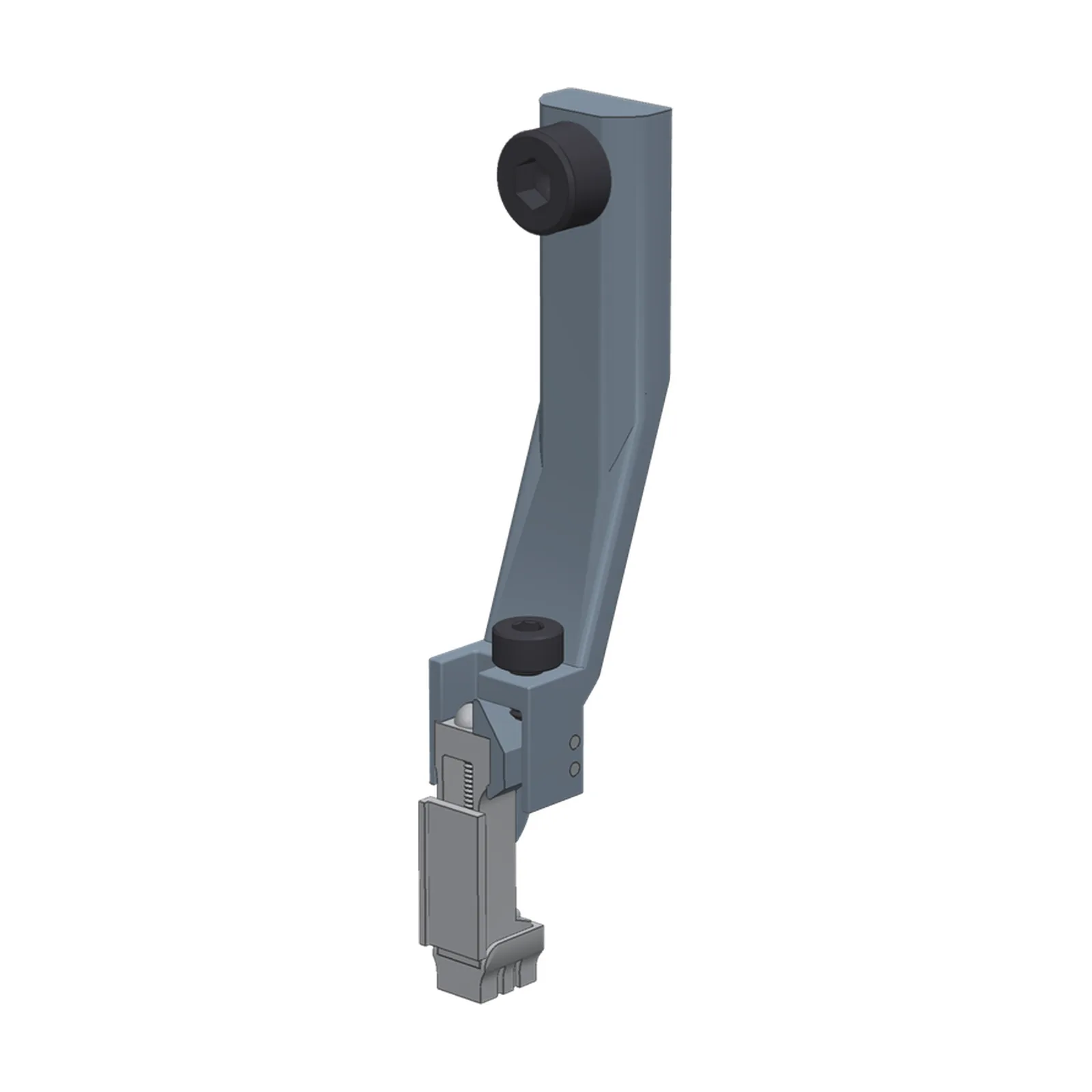

The R2 metal holder carries an R2drive or R2rail from the assembly and storage case to the stereotax and back. Its orthogonal wedge clamp is tightened from above with a 1.5 mm hex driver and presses a flat face sideways against the drive, for a strong grip without torque. An M3 panel screw fixes the holder either in the case or on the stereotactic adapter. Because the drive stays in its holder between experiments, one holder per drive lets you keep several probes loaded at the same time.
Recommended with this product
Pairs with

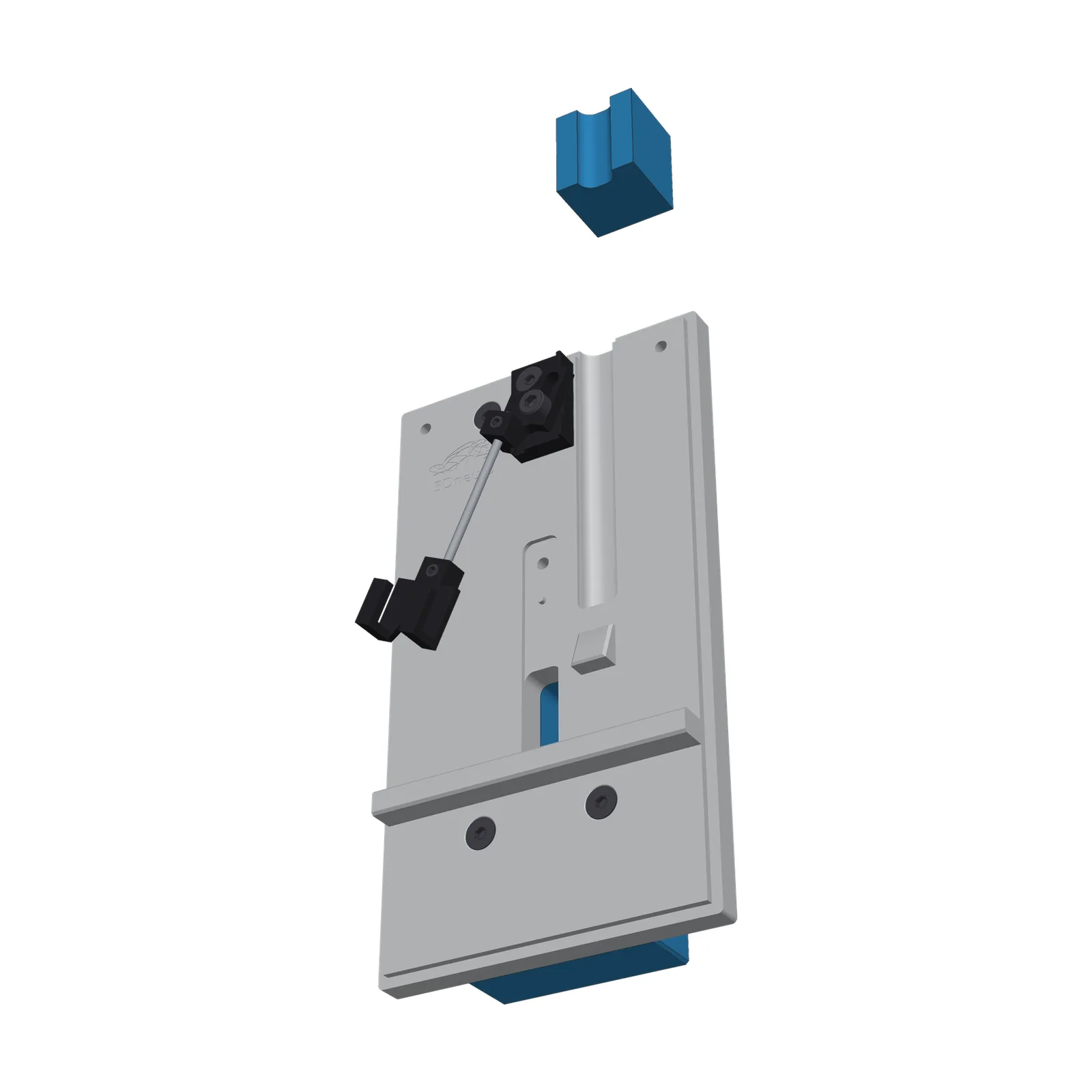

R2 assembly and storage case
€195
One case per holder if you want to store several loaded drives at the same time. Requires the R2 metal implantation system (for the stereotactic adapter)
Features

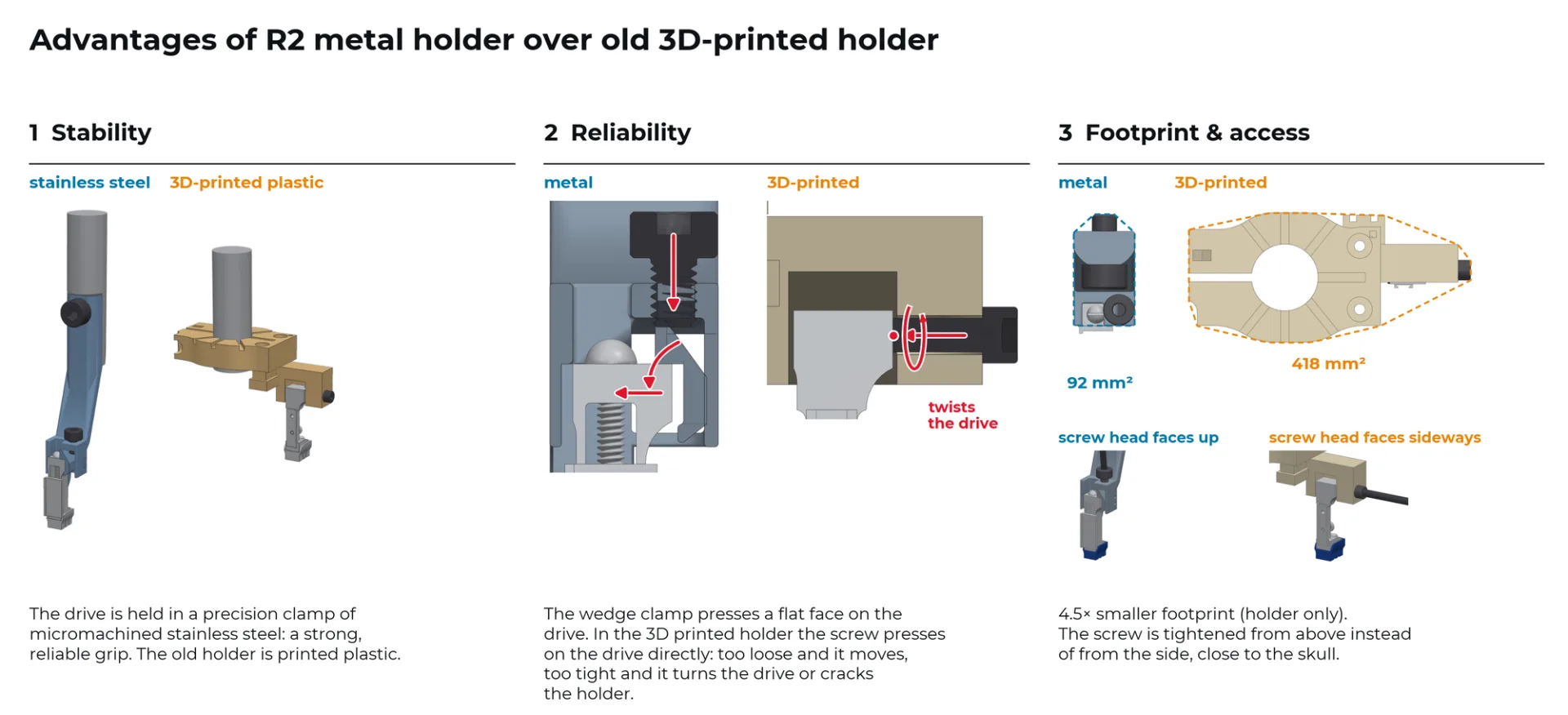

- Micromachined stainless steel: small, rigid and durable

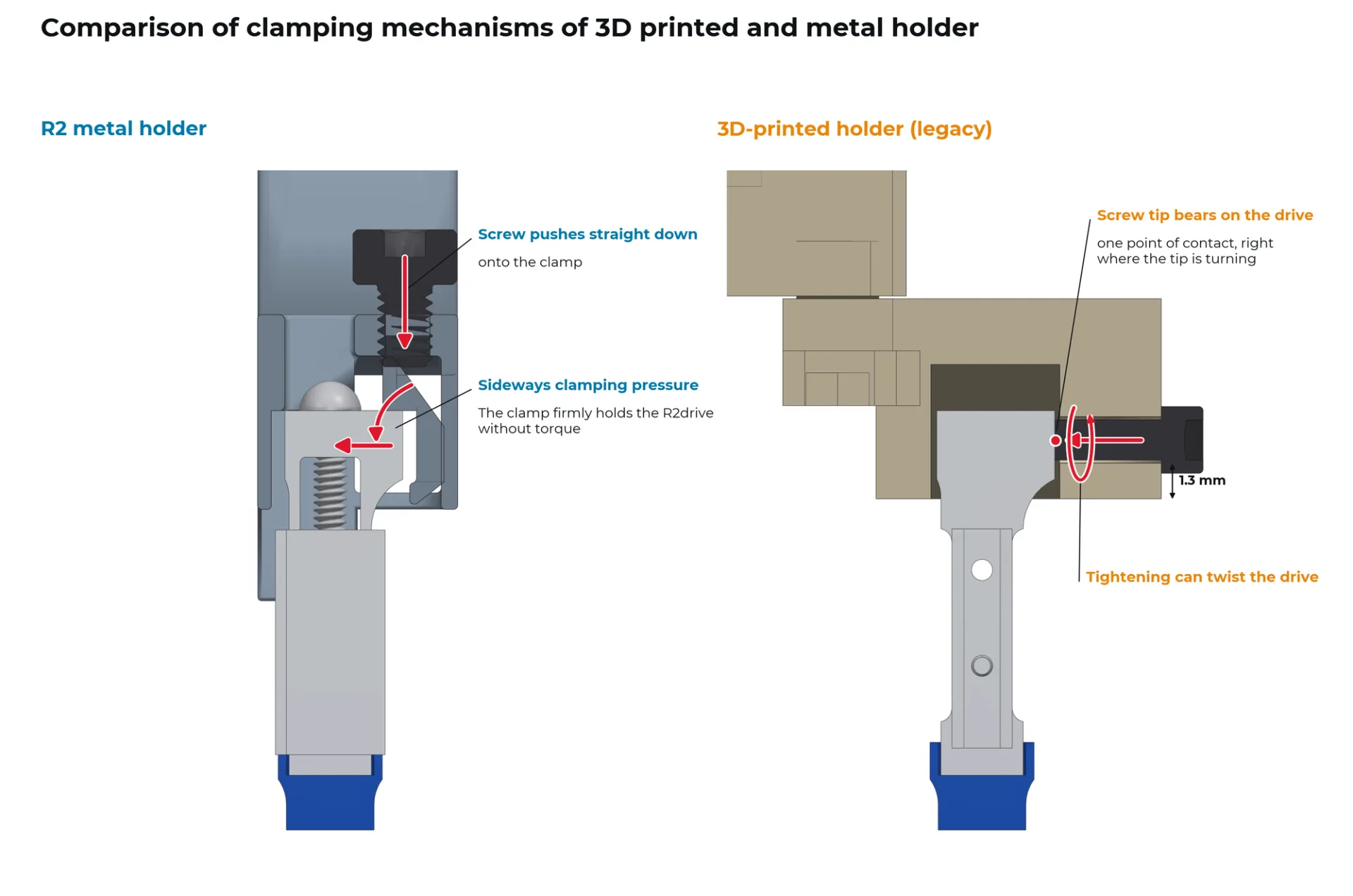

- Orthogonal wedge clamp, tightened from above; no twisting of the drive
- Fixes in the assembly and storage case or on the stereotactic adapter with one M3 panel screw

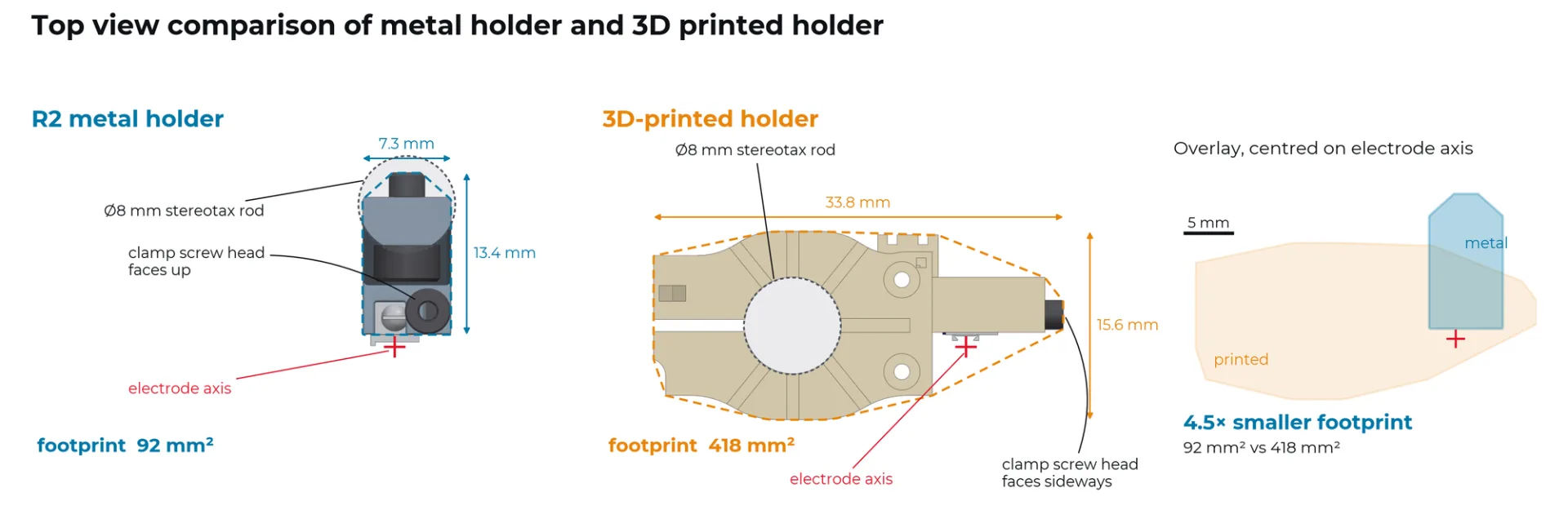

- 4.5× smaller footprint over the skull than the 3D-printed holder
- Autoclavable
Specifications
- Material
- Micromachined stainless steel
What's included
- R2 metal holder, assembled
